Diamond's industry-leading safety record is the result of our commitment to protecting you and your passengers with a long list of active and passive safety features.

Active safety features help to avoid accidents in the first place, the first and most important line of defense. Passive safety features are designed to minimize the probability and degree of injury, in case the unexpected happens.

DA20-C1 provides professional and reliable solutions for the stability and ease of operation, redundant structure design, system backup and so on.

The composite material airframe with full life cycle is strong and durable. Compared with traditional alloy material, the fuselage is smooth without rivet, which greatly reduces the resistance and weight, and is convenient for maintenance.

The DA20-C1 integrated cockpit and the vital systems of aircraft are the complete safety unit with excellent crashworthiness and fire resistance of the fuselage.

The airframe is modular and all replacement parts, from control panel to entire wings and other major assemblies can be replaced individually, in case of damage, minimizing maintenance difficulty and cost.

The fighter seat cover brings a 360 degree panoramic view, and is more convenient for the crew to enter the cockpit. Sensitive middle rod push rod control and comfortable moving seats make each flight more comfortable and relaxed. DA20-C1 meets the extreme requirements of a large number of critical customers, it has served the United States Air Force for more than 15 years.

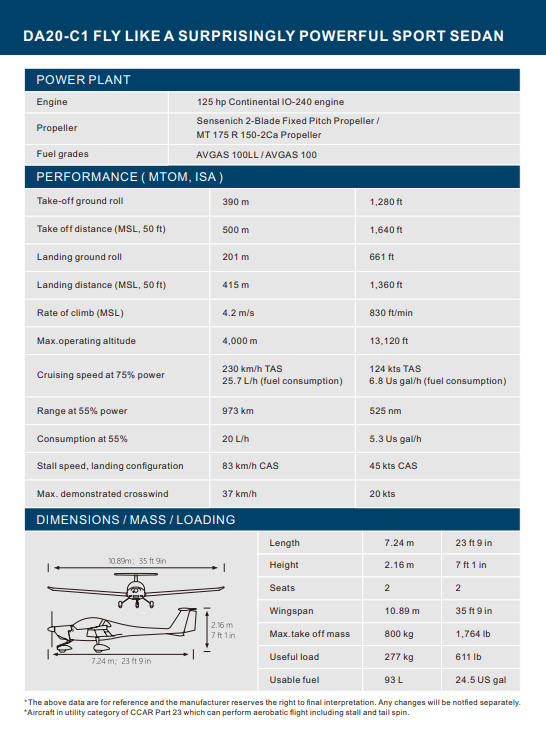

The DA20-C1 gliding ratio is as high as 1:14, the climbing rate is 1000 feet / minute, the cruising speed is over 130 knots, and the take-off distance is 50 feet away from the ground, which is only 1600 feet. Even in the high altitude area, the performance of DA20-C1 is excellent.

DA20-C1 can be used as a sports aircraft, also, at the slow speed of 45 stall, the tail rotation authentication can be completed steadily and perfectly. The excellent aerodynamic layout of the fuselage has the ability to resist 20 sections of demo wind.

DA20-C1's sport cockpit is comfortable and has excellent view. This is due to a more professional ergonomic seat, the seat surface is made of leather or sheepskin, equipped with 4 point inertial reel safety belt and professional quality material dashboard.

The hatch cover and rear window of DA20-C1 provide an incredible external vision relative to the front seat of the wing, which can help you identify air traffic, and most importantly, enjoy flying.

 DA20-C1, with a 125 horsepower io-240 engine, is equipped with two blade fixed pitch propeller, it provides excellent performance for climbing and cruising. This reliable, validated air engine has been recorded for millions of hours of flight time, and makes it well known to flight and technical personnel all over the world.

Rotax engines are to be used in domestic production of DV20E, it not only has lighter quality, but also can use ordinary automotive fuel, thus greatly improving the desirability of aircraft fuel, and greatly reducing the cost of flight operation.

DA20-C1, with a 125 hp IO-240 engines, is equipped with two blade fixed pitch propeller, it provides excellent performance for climbing and cruising. This reliable, validated air engine has been recorded for millions of hours of flight time, and makes it well known to flight and technical personnel all over the world.

Rotax engines are to be used in domestic production of DV20E, it not only has lighter quality, but also can use ordinary automotive fuel, thus greatly improving the desirability of aircraft fuel, and greatly reducing the cost of flight operation.

DA20-C1 is equipped with a standard Garmin G500 avionics equipment. The highly integrated, highly secure, professional panel is easy to operate, it is full of functions and improves the pleasure of the pilot.

This avionics system integrates the high resolution main flight display (PFD) and multi-function display (MFD) on the 10 inch wide panel, bringing the basic training cockpit to twenty-first Century, which provides a good foundation for future Garmin G1000 learners.
